FW-361Max 7 In 1 Mid-Frame Removal & Separator | FORWARD
- 7 in 1 multifunctional edge screen separator
- Up-suction vacuum design makes the removal of the middle frame easy and efficient
- heating table, available for 370°rotation + 60°right and left swing
FW-361Max 7 In 1 Mid-Frame Removal & Separator

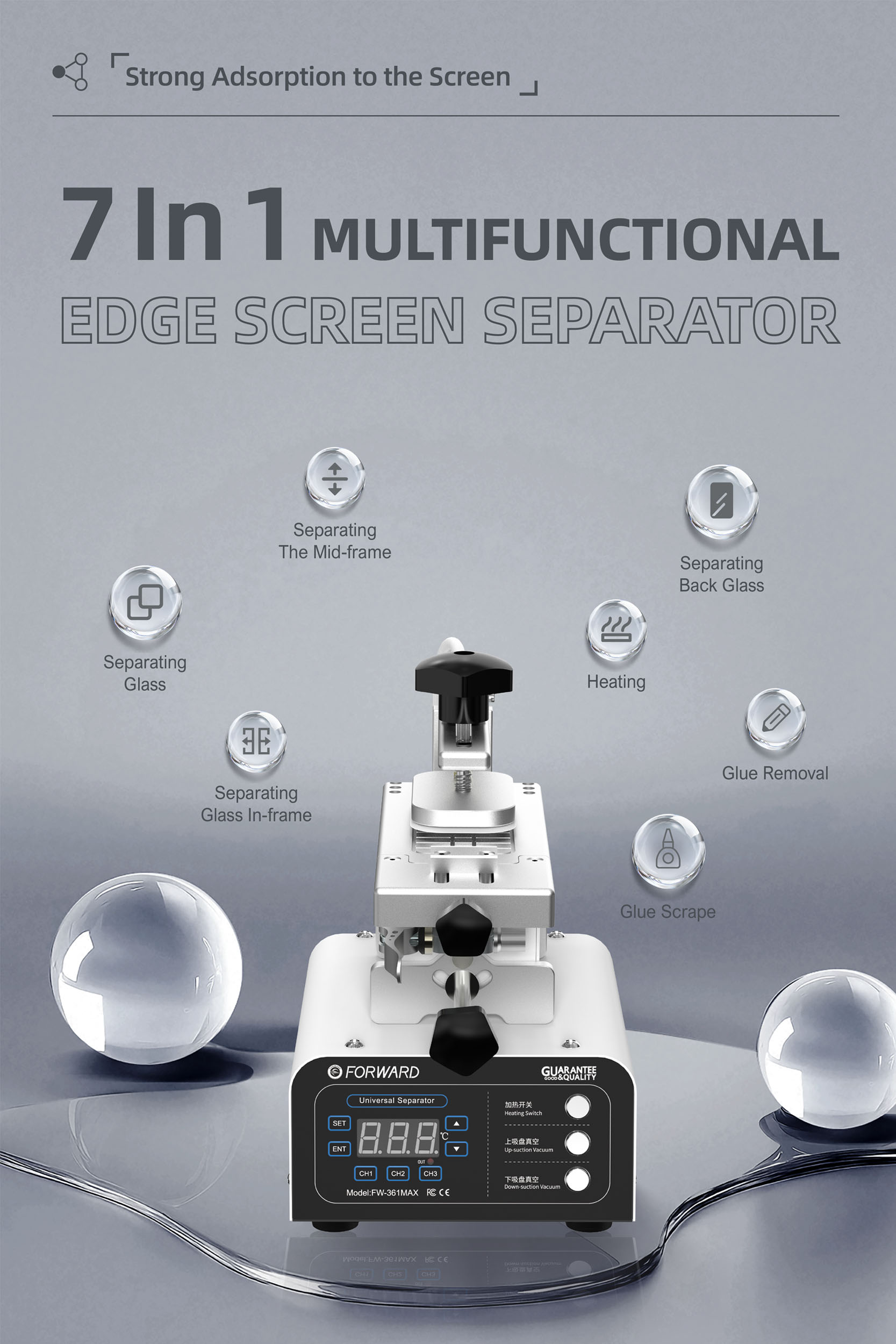

7 in 1 multifunctional edge screen separator, available for heating+glue removal+glue scrape+separating glass+separating glass in-frame+separating the mid-frame+separating back glass
Up-suction vacuum design makes the removal of the middle frame easy and efficient；The screen is up, the separation process in the middle frame is clear and intuitive, so as to avoid the glass slag scratching the liquid crystal
FORWARD

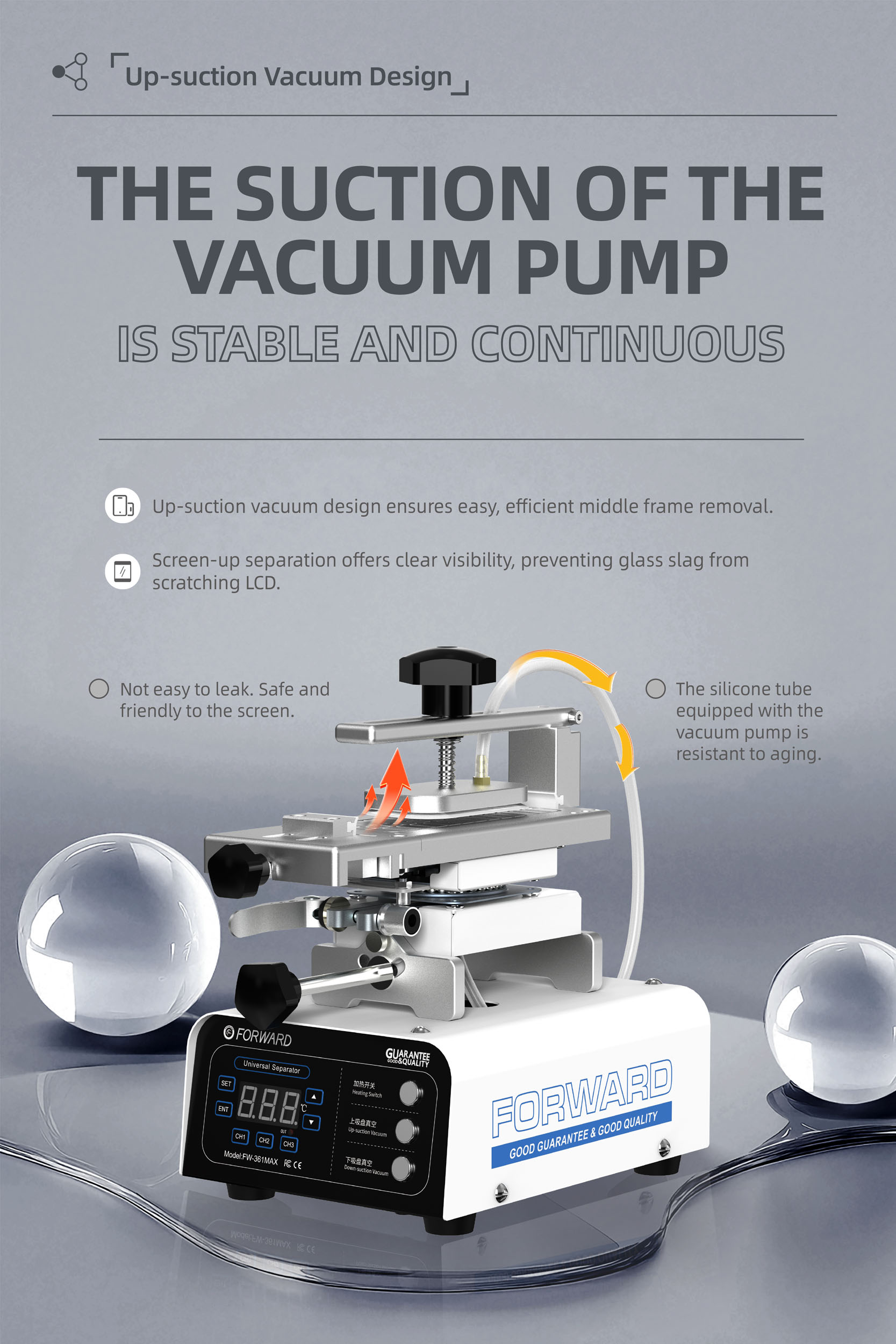

- The suction of the vacuum pump is stable and continuous, which makes the separation process not easy to leak, and is safe and friendly to the screen
- Adsorption time and switch state can be set, vacuum can be broken automatically after the end of vacuum
- The silicone tube equipped with the vacuum pump is resistant to aging
FORWARD

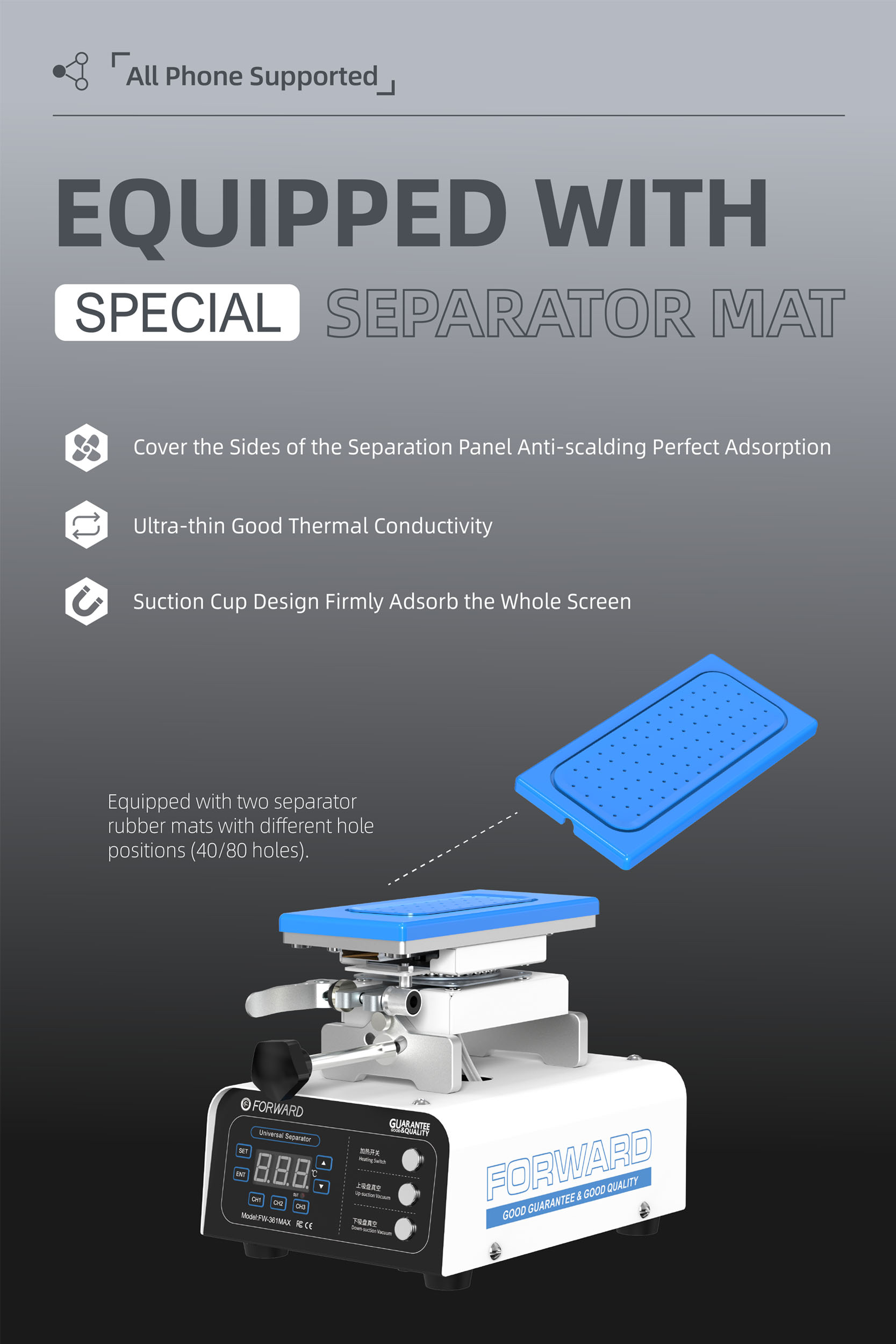

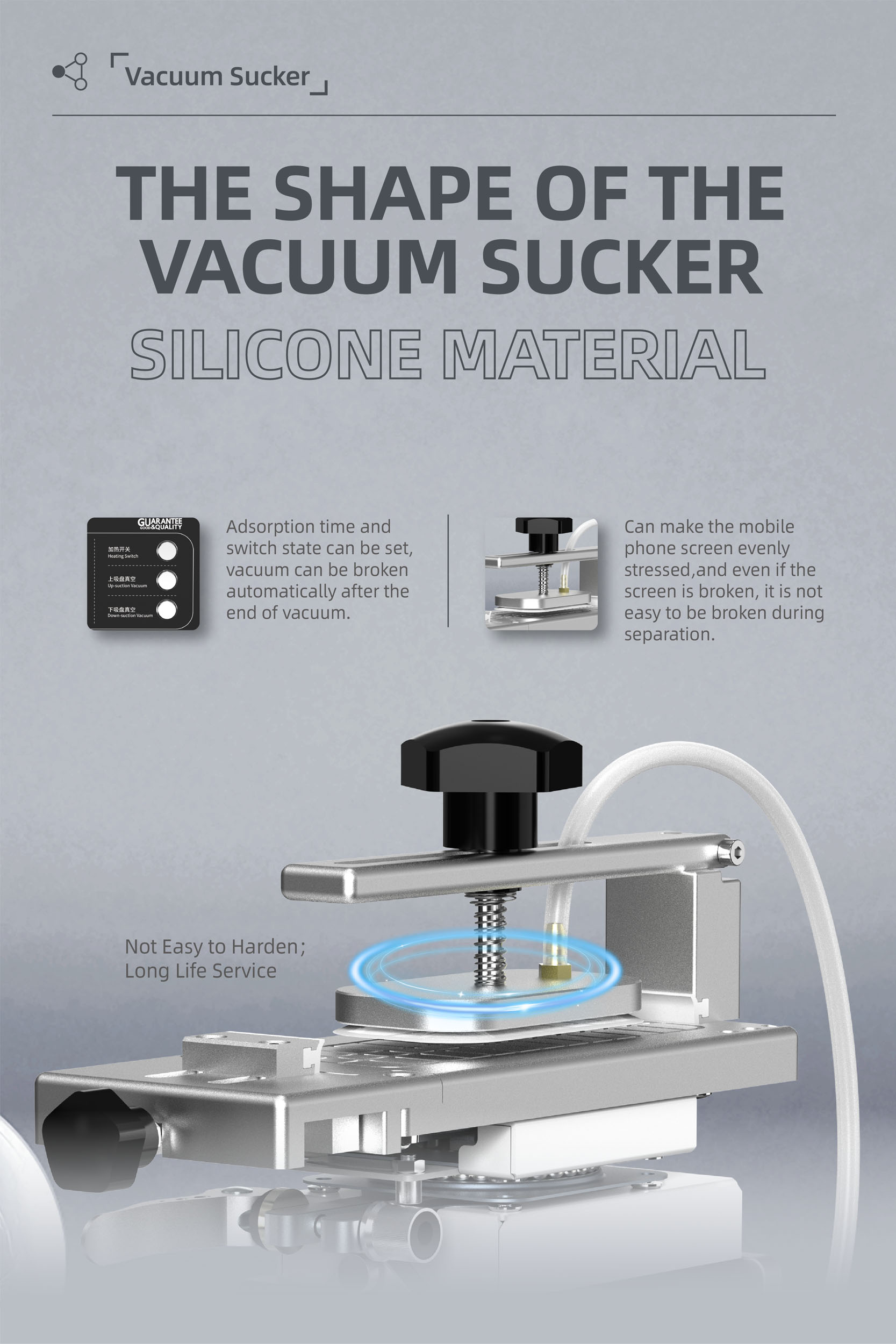

- The shape of the vacuum sucker is a rectangle with the same proportion of the mobile phone screen, which is developed by the independent mold and can make the mobile phone screen evenly stressed, and even if the screen is broken, it is not easy to be broken during separation;
- And the vacuum sucker is made of silicone material, which is not easy to harden and has long life service.
Easy to operate: 7 keys for intelligent temperature control, including 3 memory keys for the required common temperature customization, saving time and effort
Fast heating up: 2 PCT heaters are located at the bottom of the separation panel, which efficiently conducts heat and generates even heat
It can be used with edge in-frame separating mold, adjust the torque according to the size of the model, suitable for various mainstream models, separation in frame supported.
Filter configuration to prevent glass debris from being sucked into the built-in pump, protecting the built-in pump and extending its life
Automatic exhaust function, after the vacuum stop, easy to remove the LCD
High efficiency vacuum pump with super adsorption capacity
Vacuum temperature protection: When vacuum adsorption is used, the setting temperature cannot be higher than 125°; otherwise, it cannot be started
Independent buttons for temperature control and vacuum, easy to use separately
R-chamfer design on 4 sides of the separation panel, more conducive to the separation line and difficult to pull off.
Product Video

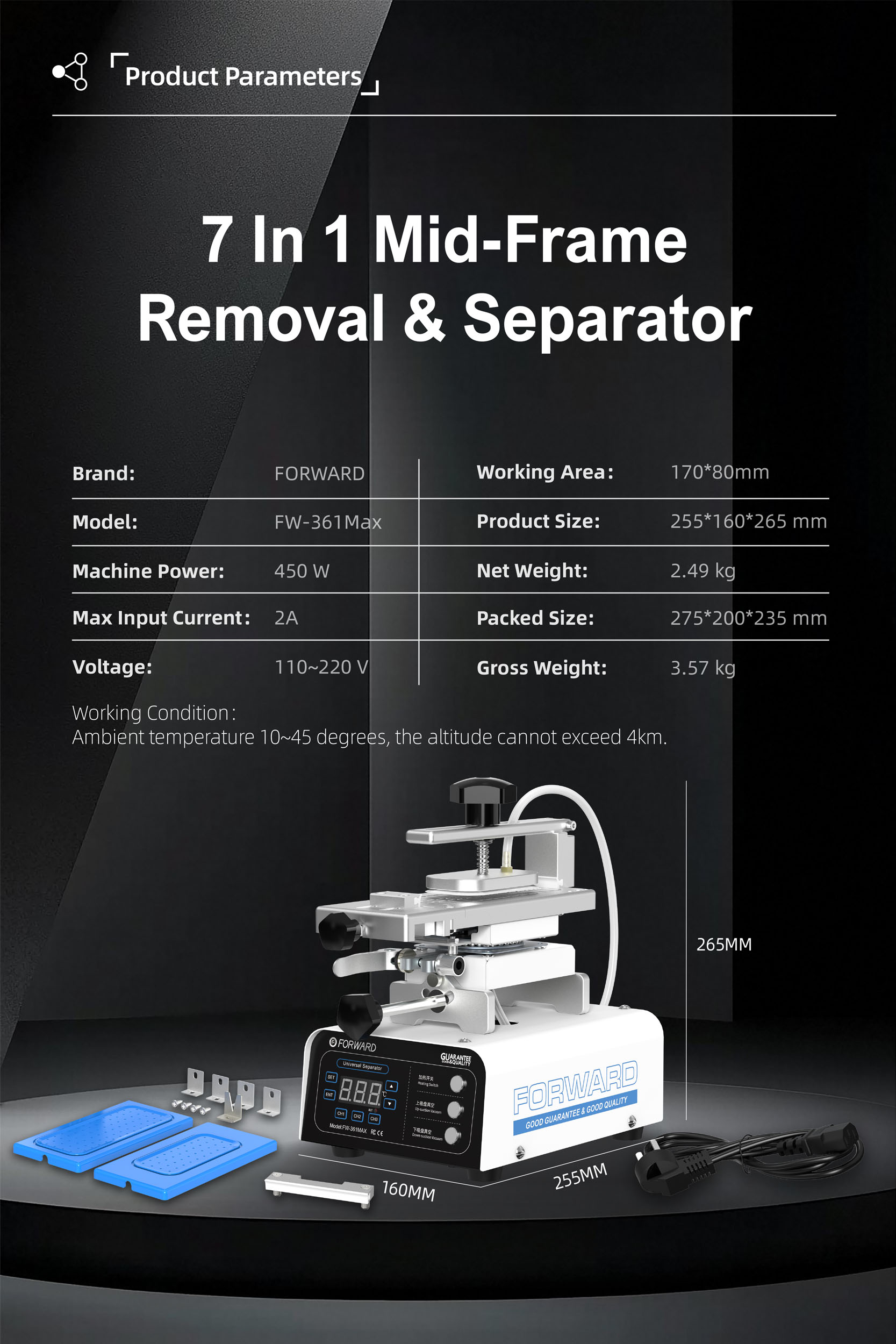

Product Parameters
| Brand: | FORWARD |
| Product Name: | 7 In 1 Mid 1-Frame Removal & Separator |
| Model: | FW-361Max |
| Power: | 450W |
| Voltage: | 110~220V |
| Product Weight: | 2.6KG |
| Product Size | 255*160*265mm |
| Package Weight： | 3.7KG |
| Package Size: | 210*290*240mm |
Product Certificate
Screen Repair Solution
Poor product quality, affecting your business? A new beginner, no one teaches? Bubble often returns, poor effect? Bought product, worried about warranty issues? As a leading enterprise of phone screen repair machines&tools manufacturing in China, FORWARD provides professional products and professional technical support for mobile phone cracked screen(Edge & Flat) repair.
Application Scenarios
Mobile Phone Store
Increase sales with on-demand screen protectors for any phone model. Our screen protector cutting machines combine precision and profitability.
Mobile Accessories Store
Make yourself stand out with custom screen protectors for every device. Our machines ensure your stock stands out in the aftermarket.
Mobile Phone Repair Shop
Convert repairs into revenue. Custom screen protector provided after repair. Our machines add value and satisfaction with every repair.
Get A Quote
Additional information
| Voltage | 110V, 220V |
|---|
